  1. Installing the included spool holder is optional, the steps here will show you how to install it to an aluminium extrusion.

    • Installing the included spool holder is optional, the steps here will show you how to install it to an aluminium extrusion.

    Edit

  2. Prepare the second spool holder like shown in the images, with the M5x100mm bolt on the left side. Spool Holder

    • Prepare the second spool holder like shown in the images, with the M5x100mm bolt on the left side.

    • Spool Holder

    • M5 x 100mm bolt

    • M5 15mm washer

    • M5 Nyloc Nut

    Edit

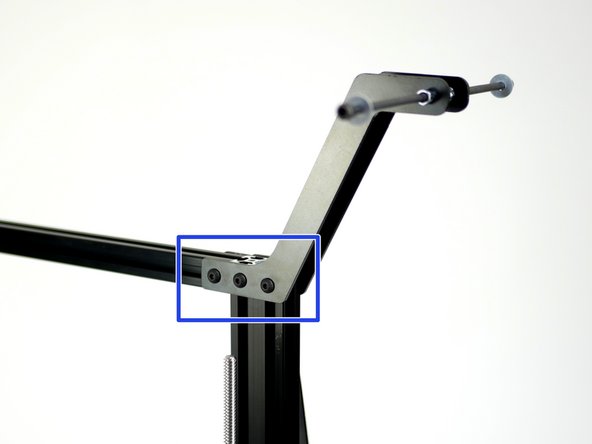

  3. Fasten on to the second spool holder three M5 T-nuts and M5 x 8mm bolts. Fix the second spool holder onto the frame.

    • Fasten on to the second spool holder three M5 T-nuts and M5 x 8mm bolts.

    • Fix the second spool holder onto the frame.
