Stage 2: Base

Written By: Makertech 3D

Comments: 42
Favorites: 0
Completions: 20

Difficulty

Easy

Steps

Time Required

00:30:00 - 00:45:00

Step 1 Preparing the Base

Prepare the base as shown:
M5 x 8mm Button
M5 T-nut
As before, do not tighten these nuts, they just need to be placed on by a few turns - they will be tightened down in the next step against the extrusions.

Step 2 Mounting the Base to the Frame

Secure the base to the bottom of the frame, orientating it as shown.

Secure the base to the bottom of the frame, orientating it as shown.
M6 x 75mm Bolt
Also add to each corner a rubber foot.
Align the foot so that it slots in place into the cutouts on the base.

Step 3 24v PSU - Voltage Setting

Before mounting the PSU, check that it's voltage input is adjusted correctly. The switch on the side of the unit should be set to your mains voltage. In the UK this would be 230v, in the USA it would be set 110v.

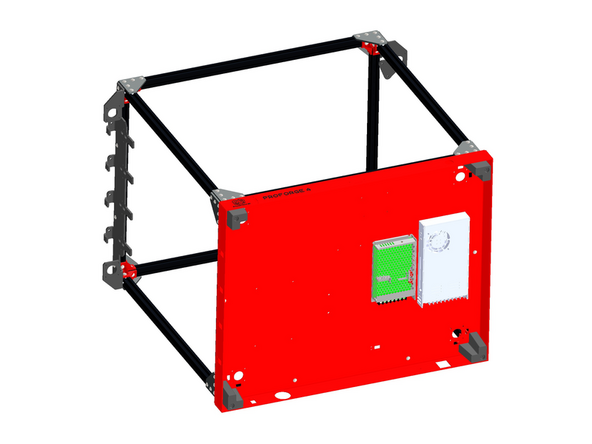

Step 4 Mounting the 24V PSU

Mount the 24V PSU to the base.
M4 x 6mm Button Head Bolts
Ensure that it's mounted with its terminals pointing to the rear of the machine.

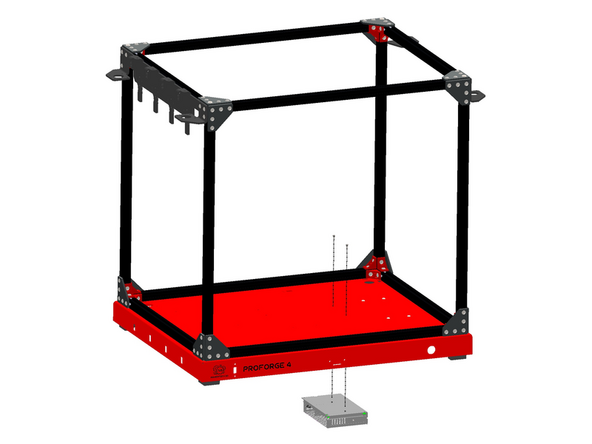

Step 5 48v PSU - Voltage Setting

Before mounting the PSU, check that it's voltage input is adjusted correctly. The switch on the side of the unit should be set to your mains voltage. In the UK this would be 230v, in the USA it would be set 110v.
