Stage 8: Wiring

Written By: Makertech 3D

Comments: 32
Favorites: 0
Completions: 18

Difficulty

Moderate

Steps

Time Required

Suggest a time??

Step 1 Extruder Cable Sleeving

Cut 70CM of the braided cable sleeving.
Use a lighter to melt the ends to prevent fraying.

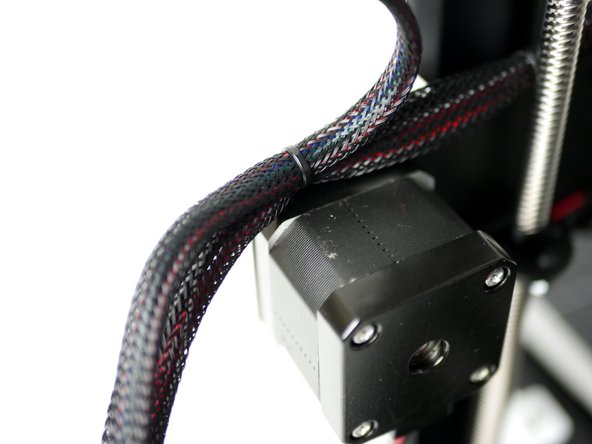

Step 2 Extruder Cables

Take two 1m motor cables.
Thread the sleaving over both of them.
Plug one of the cables into the extruder motor.
Cable tie that cable to the spool holder bracket.
Note, the second cable is there for the dual extrusion upgrade, it is installed now even if you don't have that upgrade.
