Stage 00: Unboxing

Written By: Makertech 3D
  • Comments: 13
  • Favorites: 1
  • Completions: 16

Difficulty

Very easy

Steps

11

Time Required

Suggest a time??

Sections

1

Flags

0

  1. The base model Axis 3D printer comes with: Box A - Electronics

    • The base model Axis 3D printer comes with:

    • Box A - Electronics

    • Box B - Mechanics

    • Power Supply, Cable and Adapter

    • Motor Cables (in Box A for some)

    • Base

    • Platform

    • Wrapping - Metal parts and lead screw

    Edit

  2. Depending on which upgrades you have added: Power Pack Dual Extrusion

    • Depending on which upgrades you have added:

    • Power Pack

    • Dual Extrusion

    • OctoPrint

    • Heated Bed

    • Flexplate (Single or Double) with Magnet Set (x9 magnets)

    • TMC2208 Drivers (3 or 6pcs)

    Edit

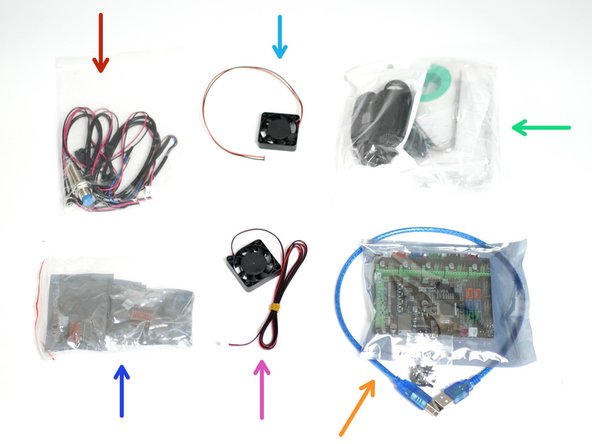

  3. Cables: Probe, 15CM End-stop, 80CM End-stop, 30CM Power Port 40mm Fan - 20CM cable

    • Cables: Probe, 15CM End-stop, 80CM End-stop, 30CM Power Port

    • 40mm Fan - 20CM cable

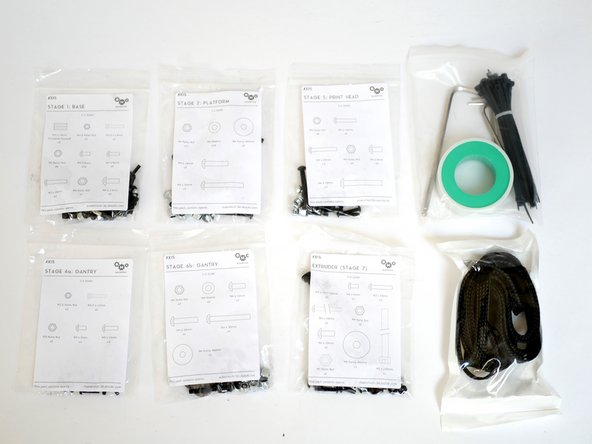

    • Fasteners and fixings: Cable sleeving, cable ties, allen keys, PTFE tape, Stage 1,2,5,6a, 6b and 7 fastener packs.

    • A4988 Stepper Drivers (x5)

    • 40mm Fan - 1M cable

    • MKS Gen_L V2 Control Board, USB cable and 15 Jumpers.

    • Motor Cables

    Edit

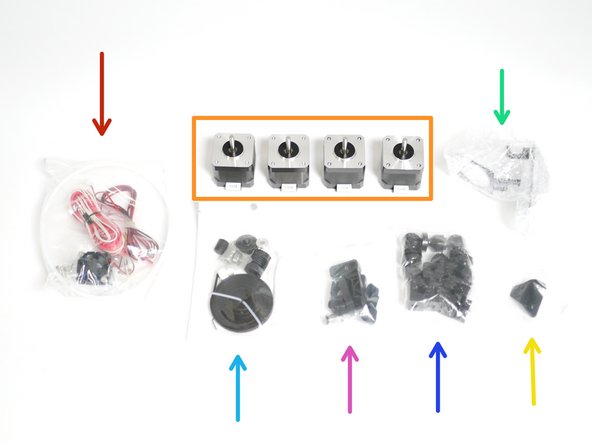

  4. Hotend Kit NEMA 17 Motors (x4)

    • Hotend Kit

    • NEMA 17 Motors (x4)

    • Tool Carriage

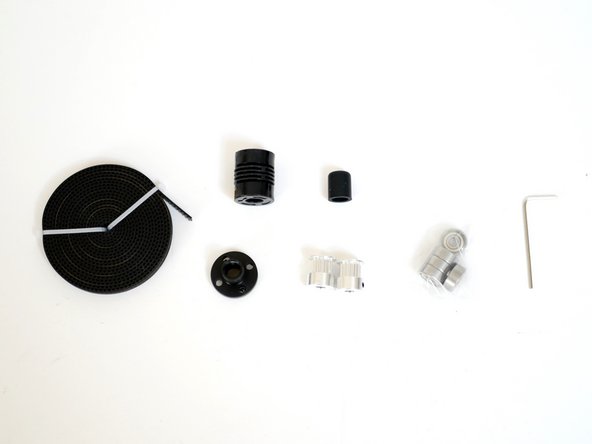

    • Timing Belt Kit: GT2 Belt, 5x8 Coupling, Pulley (x2), 624ZZ Bearings (x5), Lead Screw Nut, Lead Screw End Cap and Allen Key.

    • Extruder Kit

    • Linear Guides

    • Lead Screw Bracket

    Edit

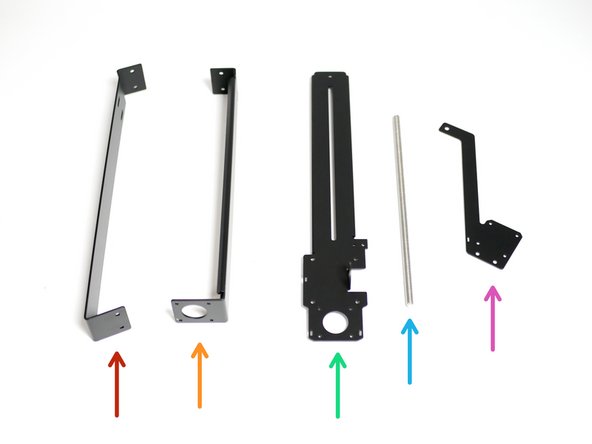

  5. Z-Pillar A

    • Z-Pillar A

    • Z-Pillar B

    • Gantry

    • Lead Screw - 265mm

    • Spool Holder

    Edit

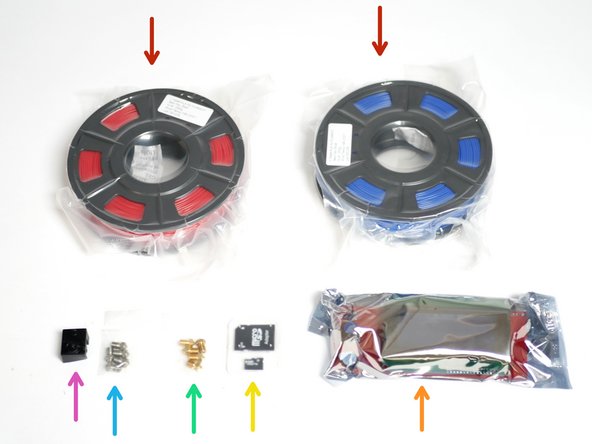

  6. Filament (x2)

    • Filament (x2)

    • LCD Screen

    • SD Card

    • Brass Nozzles

    • Steel Nozzles

    • Silicone Hotend Sock

    Edit

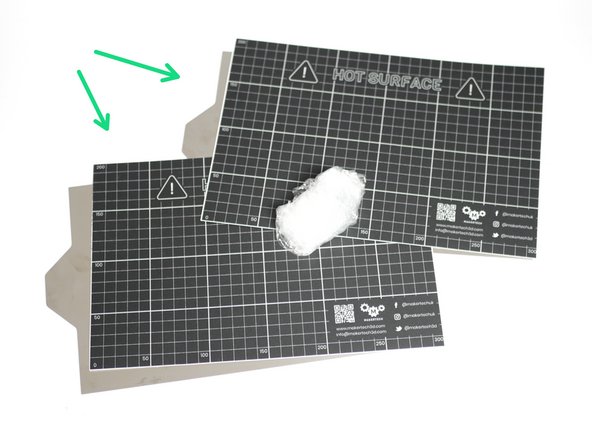

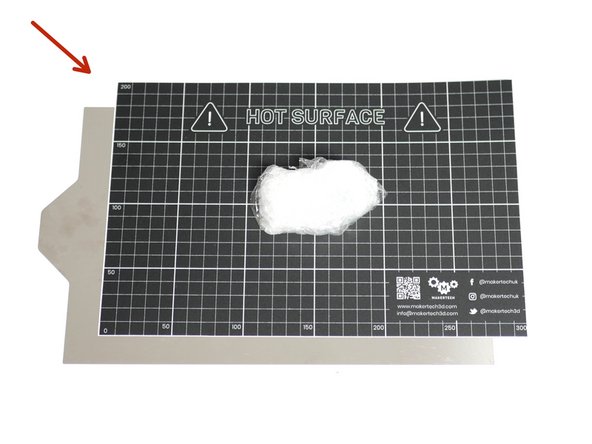

  7. Flexplate - Single Flexplate - Double

    • Flexplate - Single

    • Flexplate - Double

    Edit

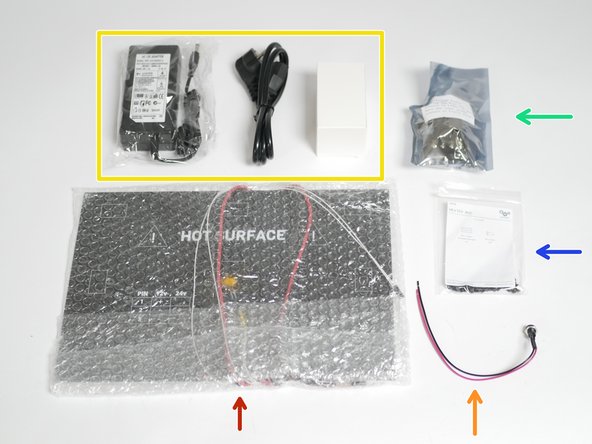

  8. Heated Bed

    • Heated Bed

    • Power Supply, Cable and Adpater

    • MOSFET

    • Fasteners

    • Power Port

    Edit

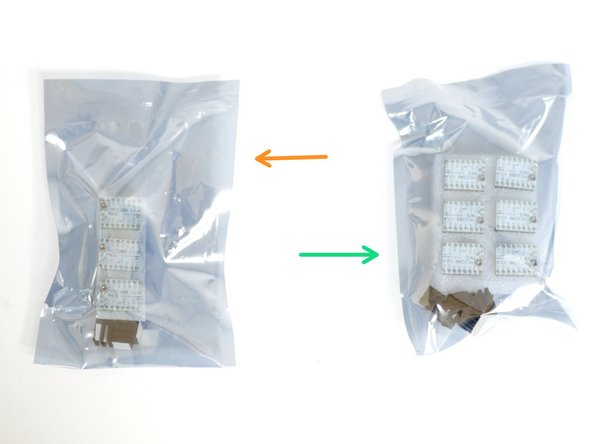

  9. TMC2208 Drivers (3pcs)

    • TMC2208 Drivers (3pcs)

    • TMC2208 Drivers (6pcs)

    Edit

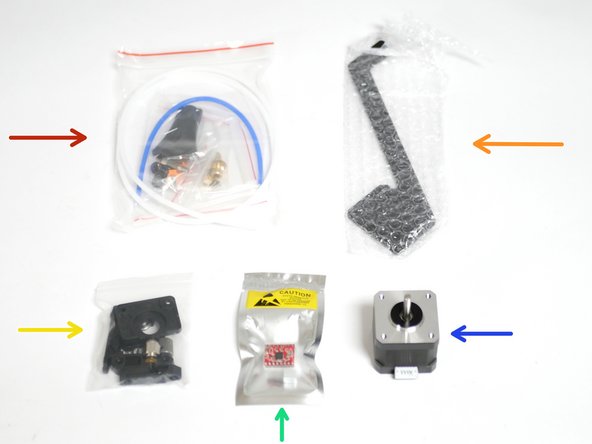

  10. Splitter Kit

    • Splitter Kit

    • Spool Holder

    • Extruder Kit

    • A4988 Driver

    • NEMA 17 Motor

    Edit

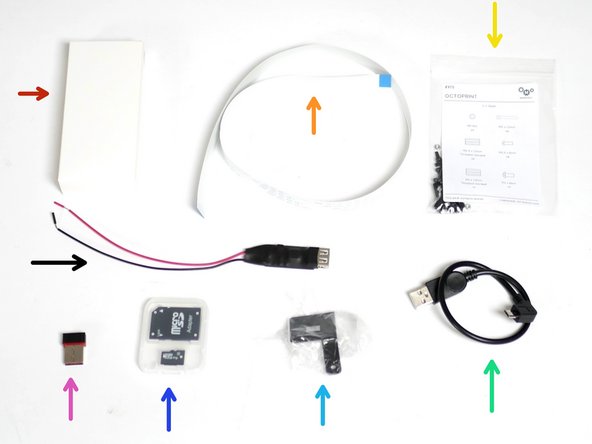

  11. Pi Cam

    • Pi Cam

    • Ribbon Cable

    • Fasteners

    • USB Cable

    • Pi Cam Mount

    • SD Card (Class 10)

    • Wi-Fi Adapter

    • USB Power Converter

    Edit
