Stage 00: Unboxing

Written By: Makertech 3D
  • Comments: 13
  • Favorites: 1
  • Completions: 16

Difficulty

Very easy

Steps

14

Time Required

Suggest a time??

Sections

1

Flags

2

In Progress

In Progress

This guide is currently being written. Reload periodically to see the latest changes.

Private

Private

This guide will not appear in search results and can only be viewed by team members!

Quiz

0

  1. The base model Axis 3D printer comes with: Box A - Electronics

    • The base model Axis 3D printer comes with:

    • Box A - Electronics

    • Box B - Mechanics

    • Power Supply, Cable and Adapter

    • Motor Cables

    • Base

    • Platform

    • Wrapping - Metal parts and lead screw

  2. Depending on which upgrades you have added: Power Pack Dual Extrusion

    • Depending on which upgrades you have added:

    • Power Pack

    • Dual Extrusion

    • OctoPrint

    • Heated Bed

    • Flexplate (Single or Double)

    • TMC2208 Drivers (3 or 6pcs)

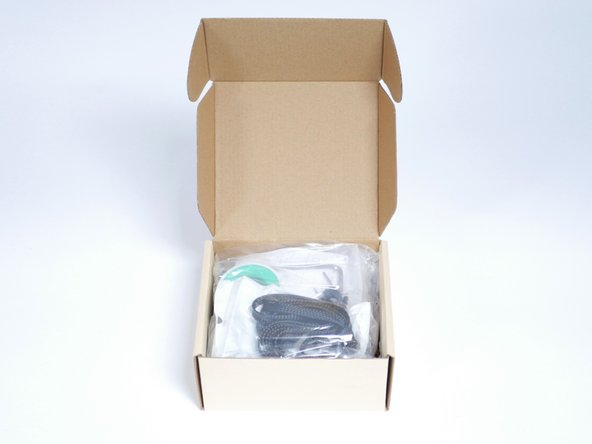

  3. Cables: Probe, 15CM End-stop, 80CM End-stop, 30CM Power Port 40mm Fan - 20CM cable

    • Cables: Probe, 15CM End-stop, 80CM End-stop, 30CM Power Port

    • 40mm Fan - 20CM cable

    • Fasteners and fixings: Cable sleeving, cable ties, allen keys, PTFE tape, Stage 1,2,5,6a, 6b and 7 fastener packs.

    • A4988 Stepper Drivers (x5)

    • 40mm Fan - 1M cable

    • MKS Gen_L V2 Control Board, USB cable and 15 Jumpers.

  4. Hotend Kit

    • Hotend Kit

    • NEMA 17 Motors (x4)

    • Tool Carriage

    • Timing Belt Kit: GT2 Belt, 5x8 Coupling, Pulley (x2), 624ZZ Bearings (x5), Lead Screw Nut, Lead Screw End Cap.

    • Extruder Kit

    • Linear Guides

    • Lead Screw Bracket

  5. Z-Pillar A

    • Z-Pillar A

    • Z-Pillar B

    • Gantry

    • Lead Screw - 265mm

    • Spool Holder

    • Insert wisdom here.

    • Insert wisdom here.

    • Insert wisdom here.

    • TMC2208 Drivers (3/6pcs)
