Plug the second extruder cable into position on the control board.
-
This cable came with the Axis printer and should already have been installed during the main build.
-
-
-
If you have a TMC2208 Driver skip to step 4.
-
The stepper drivers are the most delicate part of the Axis 3d printer and it is why we've also included a spare. Before opening, make sure that you are grounded (touch a large metal object) to avoid any chance of static damage.
-
Prepare the A4988 Stepper Driver by removing it from its packaging and sticking the heat-sink to the black chip.
-
Make sure that the heat-sink is not touching any of the pins. Orient the fins of the heat-sink as shown.
-
Adjust the trimpot so that flat side is pointing left as shown in the second photo.
-
-
-

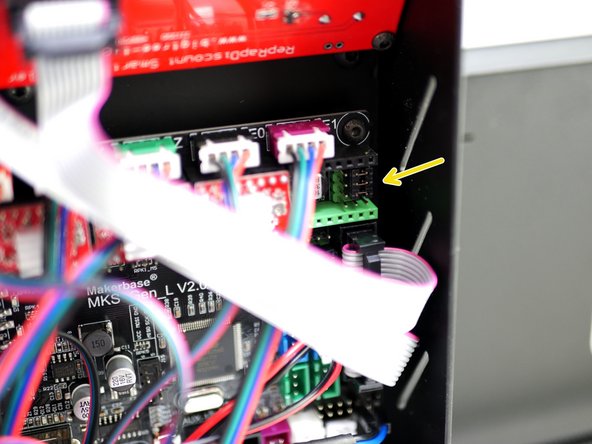

Check also that you have three jumpers installed like shown.
-

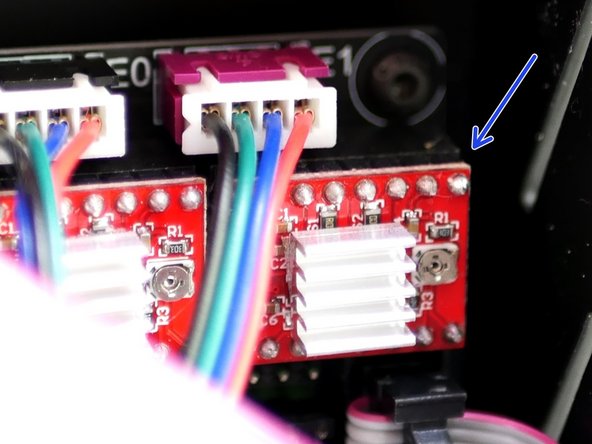

Install the stepper driver onto the control board in the position shown.
-
Make sure that the driver is orientated with its trim-pot pointing away from the power terminals. Plugging it in the wrong way round will destroy it.
-
-
-
The stepper drivers are the most delicate part of the Axis 3d printer and it is why we've also included a spare. Before opening, make sure that you are grounded (touch a large metal object) to avoid any chance of static damage.
-

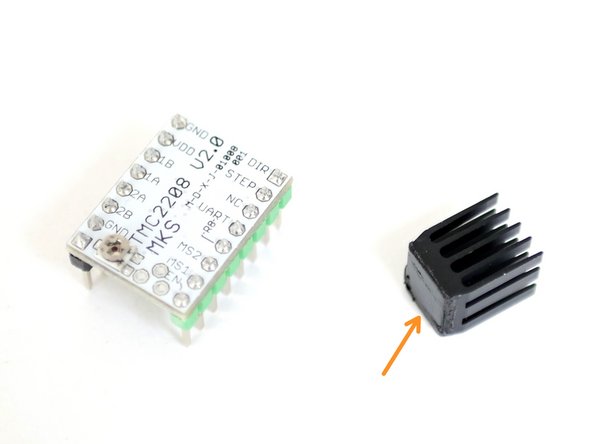

The TMC2208 upgrade comes with either 3 or 6 drivers. If you have three you can use two on the x/y axes and keep one as spare, if you have 6 you can use them on the X/Y/Z/E1 (and E2 for dual extrusion) and have one spare.
-

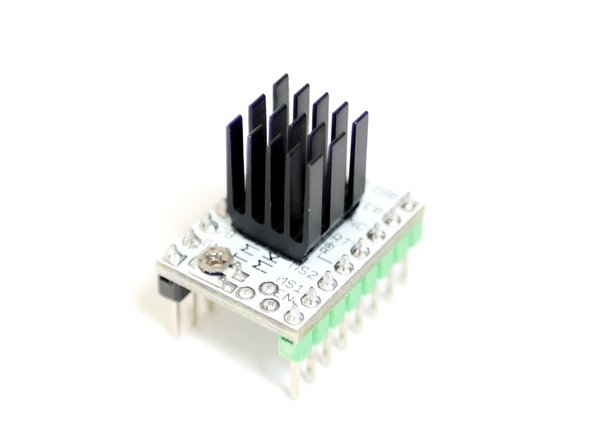

Prepare the TMC2208 stepper drivers by removing them from their packaging and sticking the heat-sink to the top.
-
Make sure that the heat-sink is not touching any of the pins. Orient the fins of the heat-sink as shown.
-
-
-

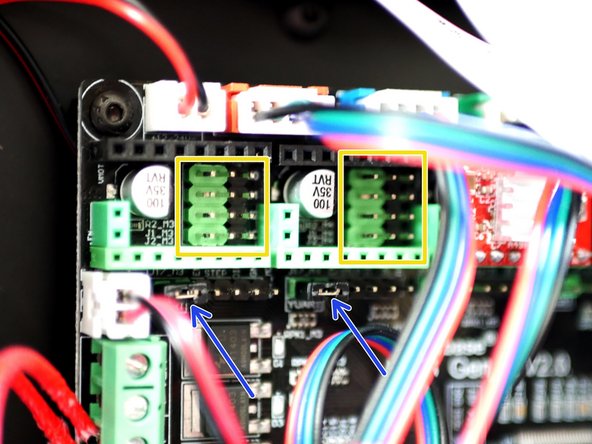

The photos shown these drivers being installed on the X/Y axes, the process for installing on the E2 position is identical.
-
To install the TMC2208 drivers you will need to make sure that there are no jumpers plugged in at the stepper driver locations on the control board.
-
You will however need to make sure that there is one jumper placed on the UART pins for each axis you have a TMC2208 installed.
-

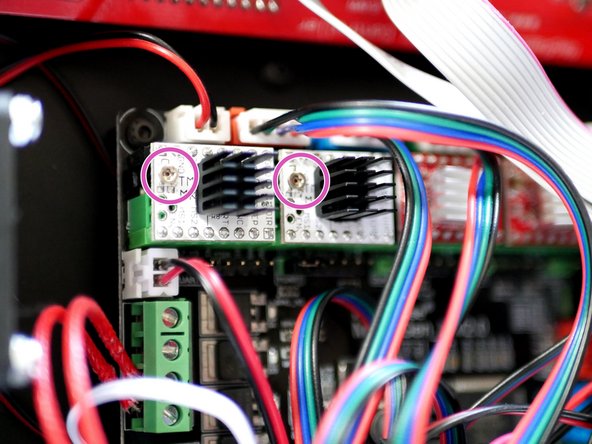

Plug the TMC2208 driver into the positions shown, make sure that the trim-pot is pointing towards the power terminals, installing the driver the wrong way round will destroy it.
-
Note, the trim-pot doesn't need adjusting as these drivers allow us to control the current via the firmware.
-
