Stage 6 - Gantry (Proforge 2)

Written By: Makertech 3D (and 2 other contributors)
  • Comments: 8
  • Favorites: 0
  • Completions: 22

Difficulty

Moderate

Steps

3

Time Required

Suggest a time??

Sections

1

Flags

2

In Progress

In Progress

This guide is currently being written. Reload periodically to see the latest changes.

Private

Private

This guide will not appear in search results and can only be viewed by team members!

Quiz

0

  1. Take the remaining 1.4M of GT2 Timing Belt and feed it into the Y-Carriage as shown in the secont image. Make sure the loop has no turns in it and the teeth are facing inwards though out. Fix an M4 x 12mm bolt with M4 nyloc nut as shown.

    • Take the remaining 1.4M of GT2 Timing Belt and feed it into the Y-Carriage as shown in the secont image.

    • Make sure the loop has no turns in it and the teeth are facing inwards though out.

    • Fix an M4 x 12mm bolt with M4 nyloc nut as shown.

    • Do not tighten all the way! Aim to match the photo.

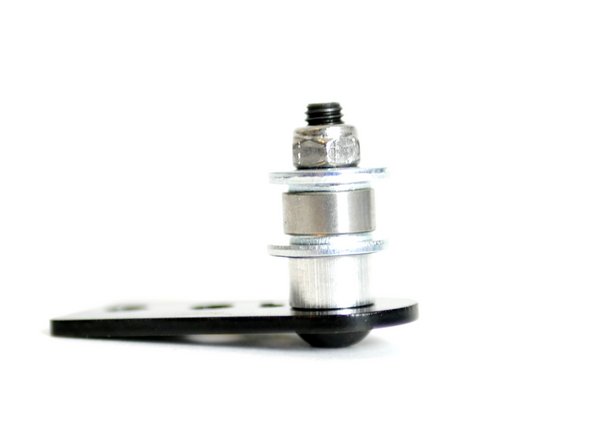

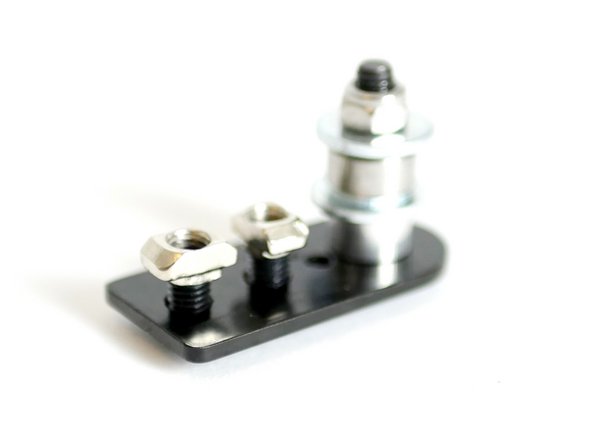

  2. Assemble the Y-Idler: M5 Nyloc Nut M5 15mm Washer

    • Assemble the Y-Idler:

    • M5 Nyloc Nut

    • M5 15mm Washer

    • M5 Washer

    • Bearing - 685ZZ

    • M5 Spacer

    • Y-Idler

    • M5 x 25mm Bolt

  3. Insert wisdom here.

    • Insert wisdom here.
