  1. The control board used in the Proforge 3 is the SKR 2 board by BigtreeTech.

    • The control board used in the Proforge 3 is the SKR 2 board by BigtreeTech.

    • More information about it can be found here.

    • The entire wiring diagram can be found at the bottom of this guide.

    Edit

    • If you are building with the 3.5 upgrade follow the guide for wiring the 3.5 upgrade alongside this guide.

    Edit

  3. Check that the jumper is set to VDD.

    • Check that the jumper is set to VDD.

    Edit

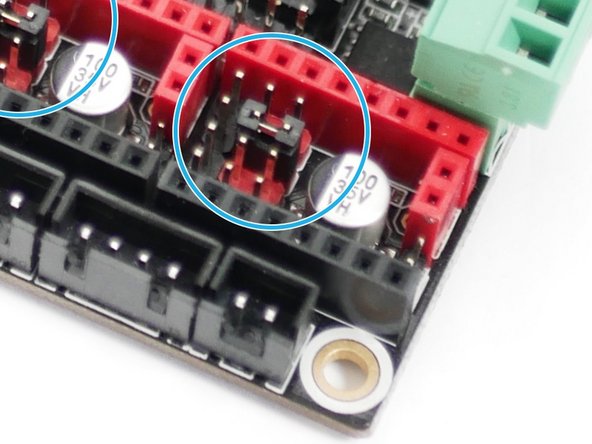

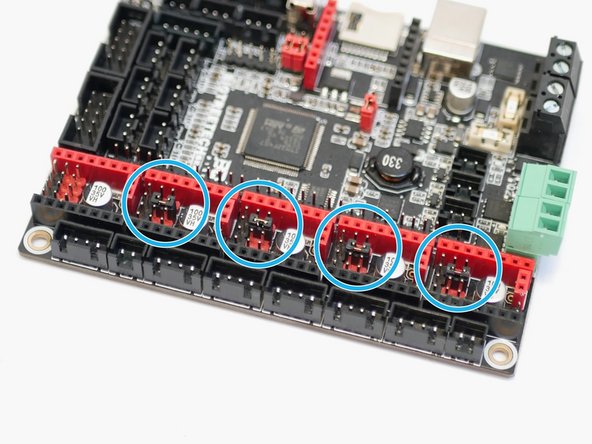

  4. Make sure the jumpers under the steppers are positioned as shown. You will need to pull the other jumpers out, so you have just one connected at each stepper location, as shown.

    • Make sure the jumpers under the steppers are positioned as shown.

    • You will need to pull the other jumpers out, so you have just one connected at each stepper location, as shown.

    Edit

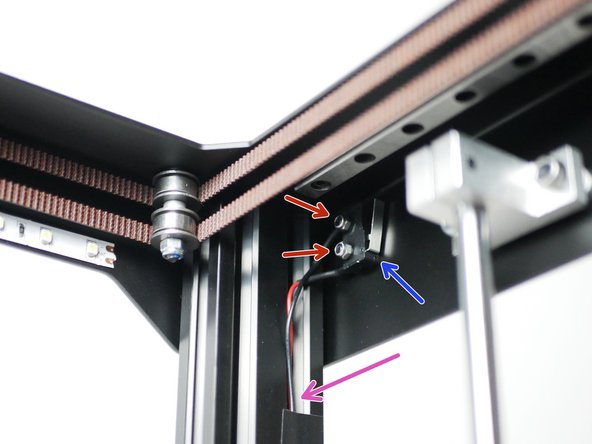

  5. Fix the Y-Endstop to the top panel. M2.5 x 12mm

    • Fix the Y-Endstop to the top panel.

    • M2.5 x 12mm

    • M2.5 Nyloc

    • Route the cable down the 2040 extrusion.

    • Optional - Use electrical tape to better secure and hide the cable.

    Edit

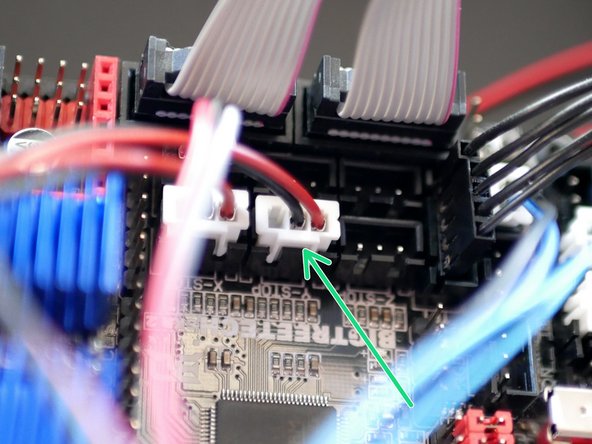

  6. Connect the Y-Endstop to the control board.

    • Connect the Y-Endstop to the control board.

    Edit

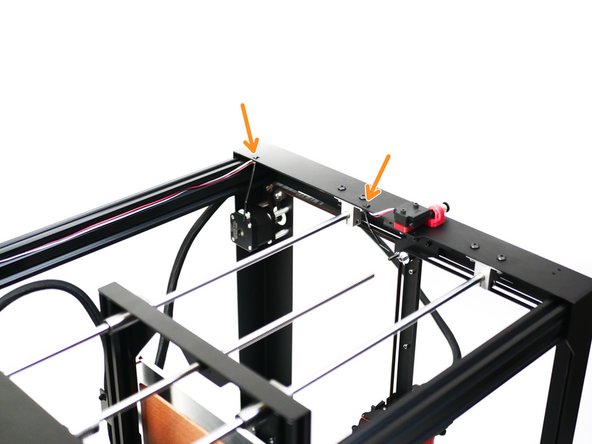

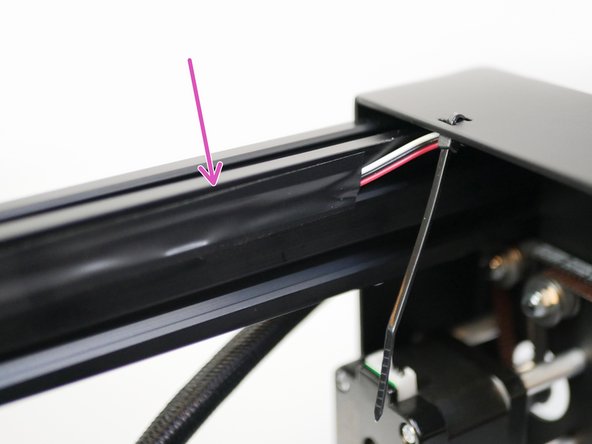

  7. Fix the filament sensor cable to the filament sensor. Route the cable along the side of the top panel. Use cable ties to secure. Route the cable down the 2040 extrusion. Use electrical tape to secure it in place.

    • Fix the filament sensor cable to the filament sensor.

    • Route the cable along the side of the top panel. Use cable ties to secure.

    • Route the cable down the 2040 extrusion. Use electrical tape to secure it in place.

    Edit

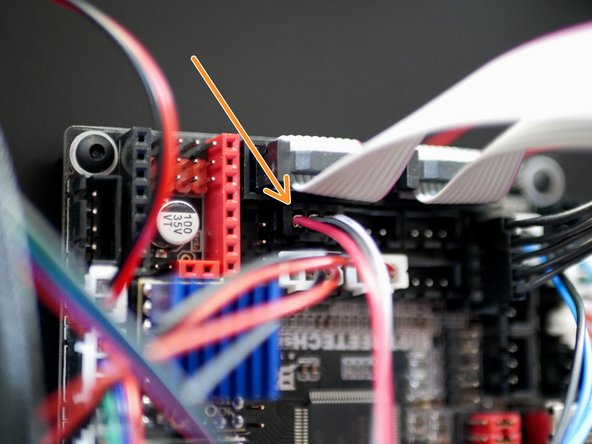

  8. Connect the filament sensor to the control board as shown.

    • Connect the filament sensor to the control board as shown.

    Edit

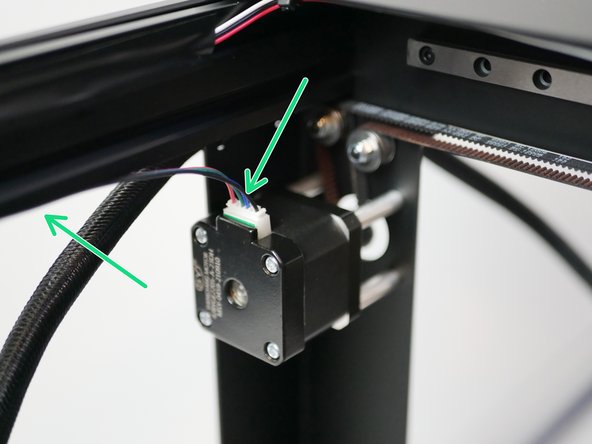

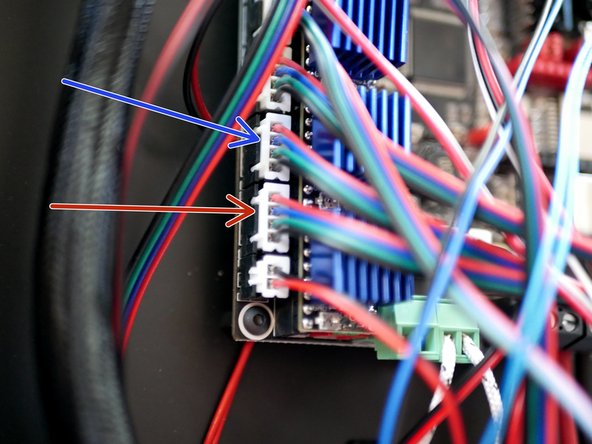

  9. Connect a motor cable to the X/Y Motors and route them down the side of the 2040 Extrusion. Use electrical tape to hide and secure in place.

    • Connect a motor cable to the X/Y Motors and route them down the side of the 2040 Extrusion.

    • Use electrical tape to hide and secure in place.

    • Connect the motor cables to the control board.

    • Left Motor

    • Right Motor

    Edit

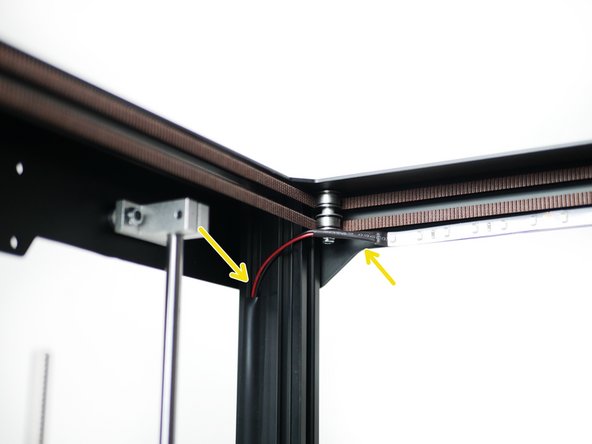

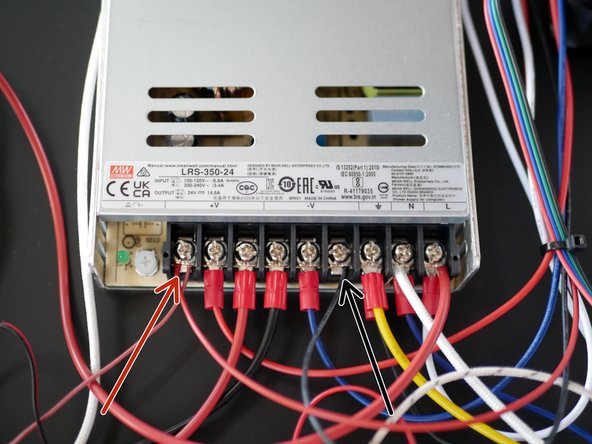

  10. Stick the LED strip light to the inside front of the top panel. Route the cable down the front right side. Again, use electrical tape to hide and hold the cable in place. Wire the LED's directly to the power supply.

    • Stick the LED strip light to the inside front of the top panel.

    • Route the cable down the front right side. Again, use electrical tape to hide and hold the cable in place.

    • Wire the LED's directly to the power supply.

    • Red to positive

    • Black to negative

    Edit

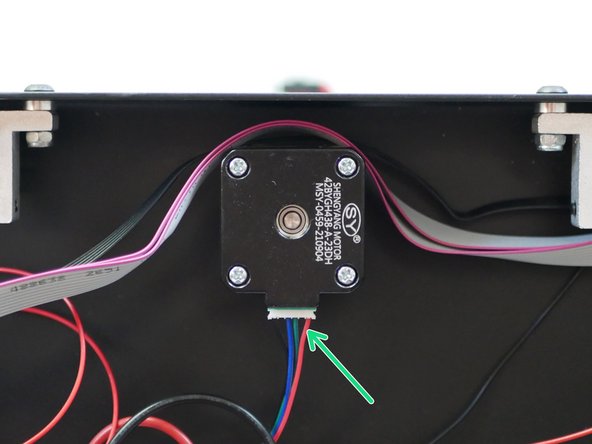

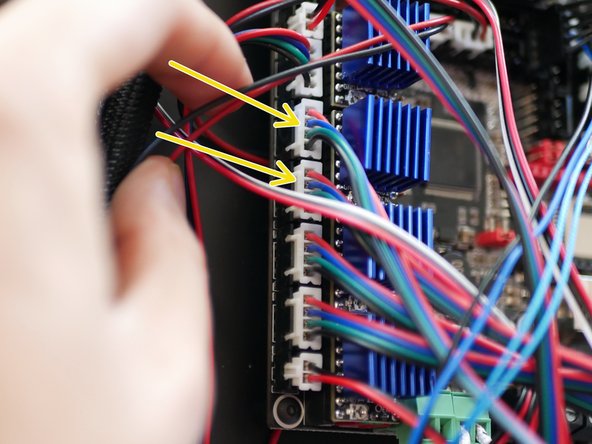

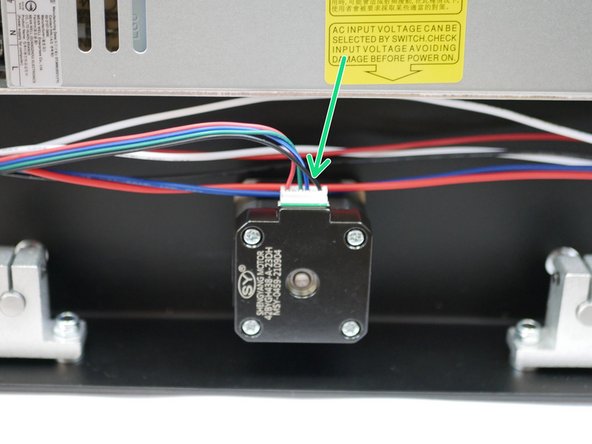

  11. Connect the remaining two motor cables to the two z-axis motors. Connect the other side to the control board. Connect the other side to the control board.

    • Connect the remaining two motor cables to the two z-axis motors.

    • Connect the other side to the control board.

    Edit

  12. Connect the X-Endstop to the control board.

    • Connect the X-Endstop to the control board.

    • This is the endstop cable from the tool carriage wiring loom.

    Edit

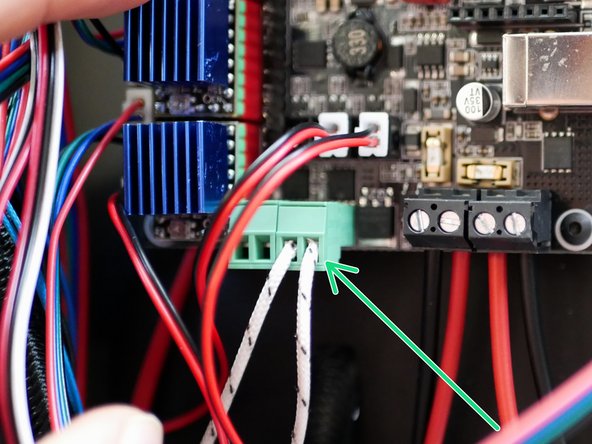

  13. Connect the Hotend heater to the control board.

    • Connect the Hotend heater to the control board.

    • The connector can actually be pulled out of the board to make connecting the cables easier.

    • You will need a small flat head screw driver for this step.

    Edit

  14. Connect the thermistor to the control board.

    • Connect the thermistor to the control board.

    Edit

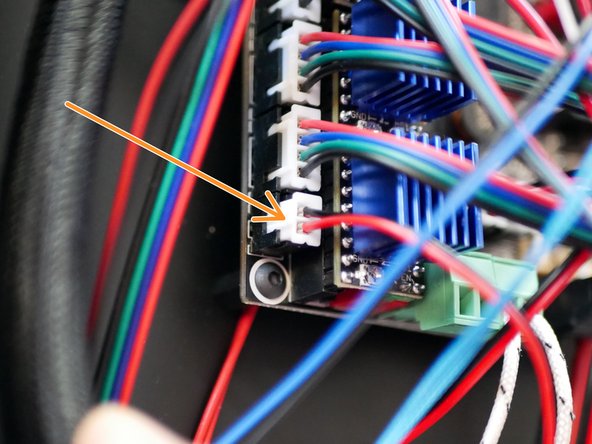

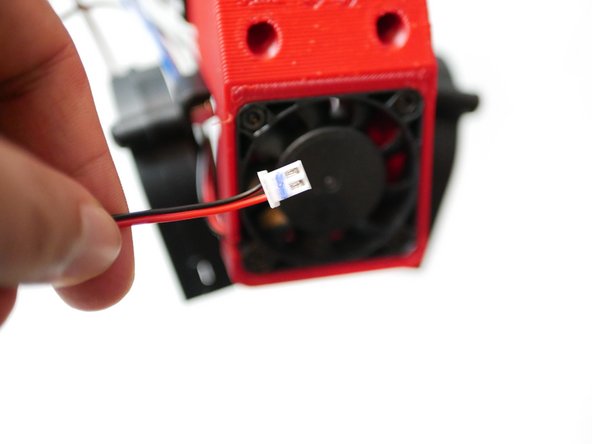

  15. Connect the hotend cooling fan cable to the control board. This is the cable that you marked earlier in the direct drive stage of the assembly.

    • Connect the hotend cooling fan cable to the control board.

    • This is the cable that you marked earlier in the direct drive stage of the assembly.

    Edit

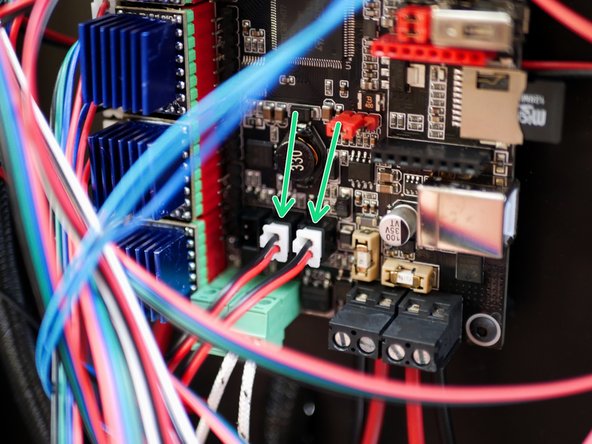

  16. Connect the part cooling fans to the positions show.

    • Connect the part cooling fans to the positions show.

    • A fan can be connected to either spot.

    Edit

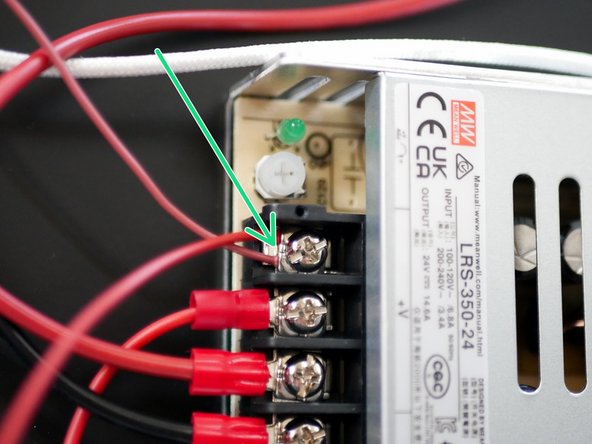

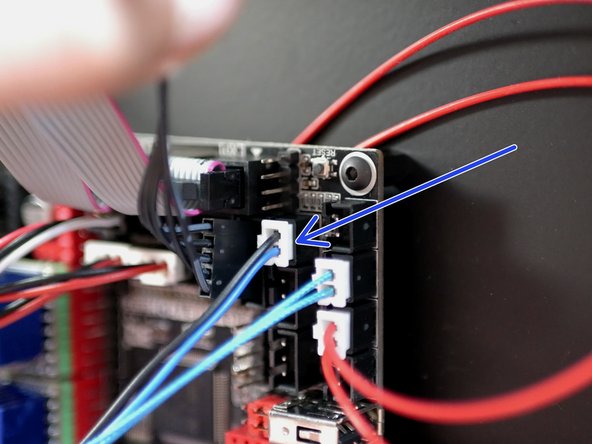

  17. Connect the brown cable from the probe directly to a positive terminal on the power supply. Connect the black and blue cable from the probe to the control board in the position shown.

    • Connect the brown cable from the probe directly to a positive terminal on the power supply.

    • Connect the black and blue cable from the probe to the control board in the position shown.

    Edit

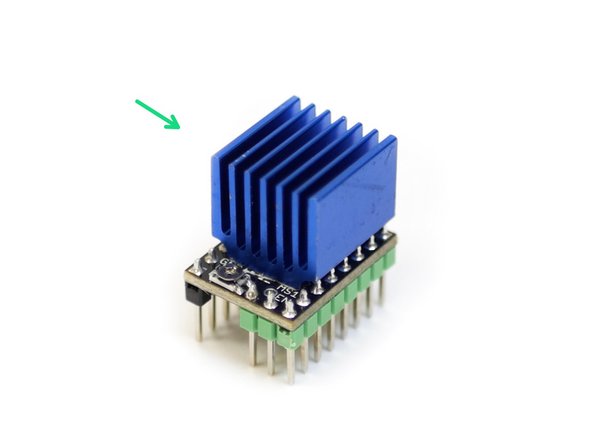

  18. Before beginning, make sure that you have earthed yourself (by touching a large metal object) to avoid the chances of static damage. Prepare the four TMC2209 stepper drivers by removing them from their packaging and securing onto them their heat sinks as shown in the first image. Make sure the heatsink is not touching any of the pins.

    • Before beginning, make sure that you have earthed yourself (by touching a large metal object) to avoid the chances of static damage.

    • Prepare the four TMC2209 stepper drivers by removing them from their packaging and securing onto them their heat sinks as shown in the first image.

    • Make sure the heatsink is not touching any of the pins.

    • Orient the fins of the heatsink as shown.

    • Mount all four of the TMC2209 Stepper Drivers to the control board as shown.

    • When installing, match the orientation of the drivers as shown, the green side of the stepper should go onto the red side of the mounts on the board.

    • Installing a stepper driver the wrong way round will destroy it.

    Edit

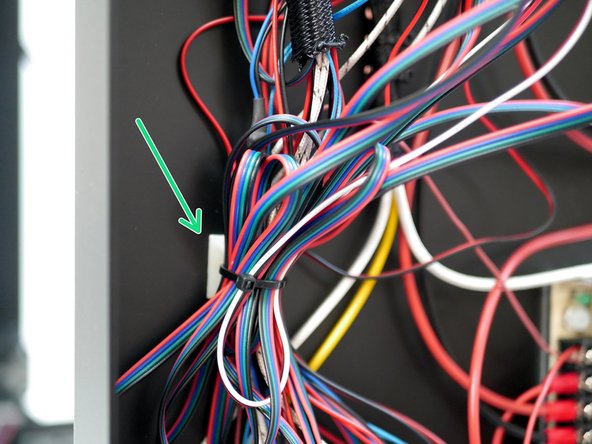

  19. Finally, use cable tie mounts to clean up the cables. Finally, use cable tie mounts to clean up the cables.

    • Finally, use cable tie mounts to clean up the cables.

    Edit

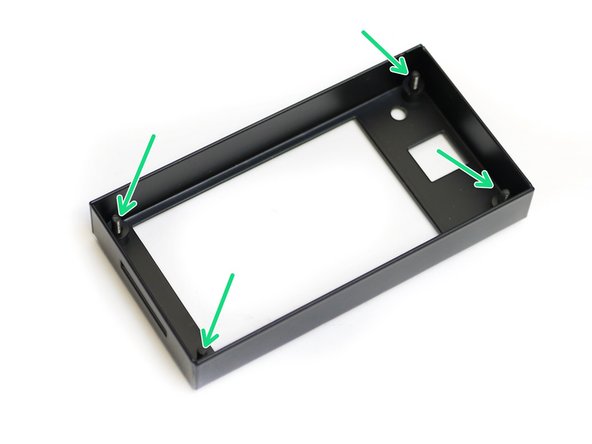

  20. Begin by taking the touch screen case and insert four M3 x 12mm bolts through the four holes shown. Place onto each of these bolts an M3 x 5mm spacer.

    • Begin by taking the touch screen case and insert four M3 x 12mm bolts through the four holes shown.

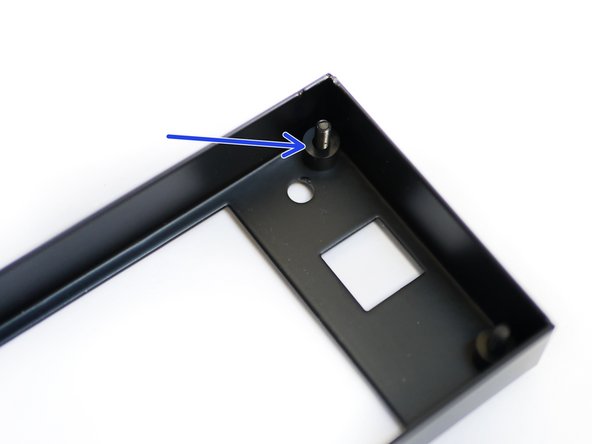

    • Place onto each of these bolts an M3 x 5mm spacer.

    Edit

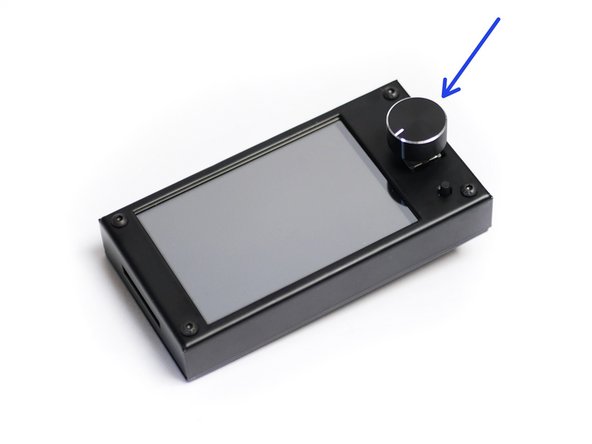

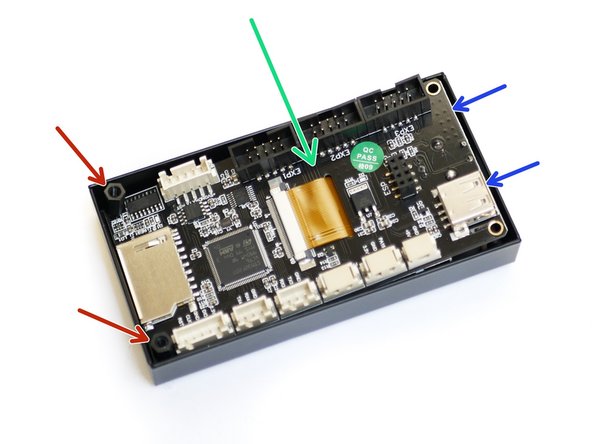

  21. Begin by removing the black control know from the front side of the screen, it should simply pull off.

    • Begin by removing the black control know from the front side of the screen, it should simply pull off.

    • Align the touch screen with the case and drop it onto the four bolts.

    • When you drop the touch screen into the case, you'll find that the control knob side will stick up.

    • Thread on two M3 x 10mm threaded spacers to the two bolts on the left as shown.

    Edit

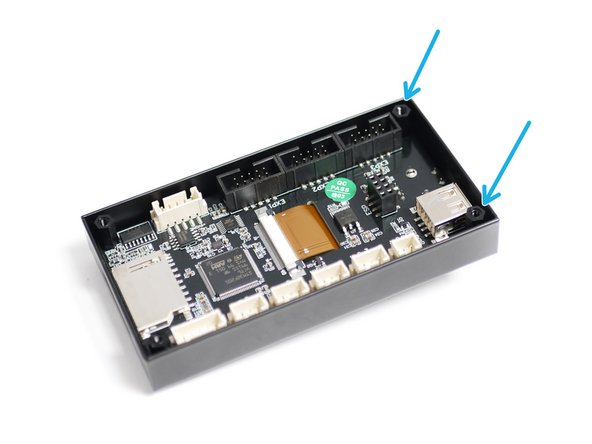

  22. With the left side secured, thread on two M3 x 10 threaded spacers to the remaining two bolts.

    • With the left side secured, thread on two M3 x 10 threaded spacers to the remaining two bolts.

    • Hold the bolts from the underneath to prevent them from falling out.

    Edit

  23. Fix the mounting plate onto the back of the casing as shown. M3 x 6mm bolt

    • Fix the mounting plate onto the back of the casing as shown.

    • M3 x 6mm bolt

    • Push the control knob back back on.

    Edit

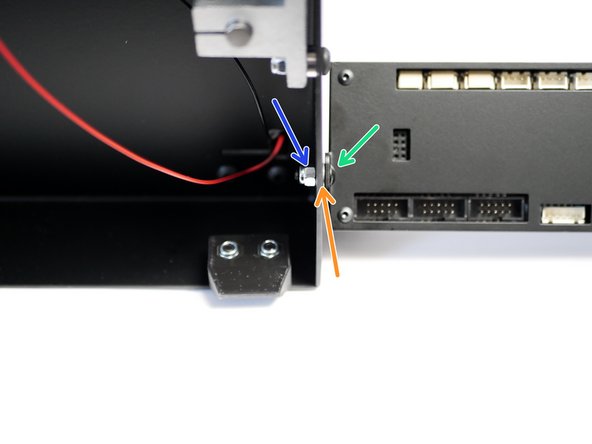

  24. Attach the touch screen case assembly to the base of the printer as shown. M4 x 10mm bolt

    • Attach the touch screen case assembly to the base of the printer as shown.

    • M4 x 10mm bolt

    • M4 Washer

    • M4 Nyloc

    Edit

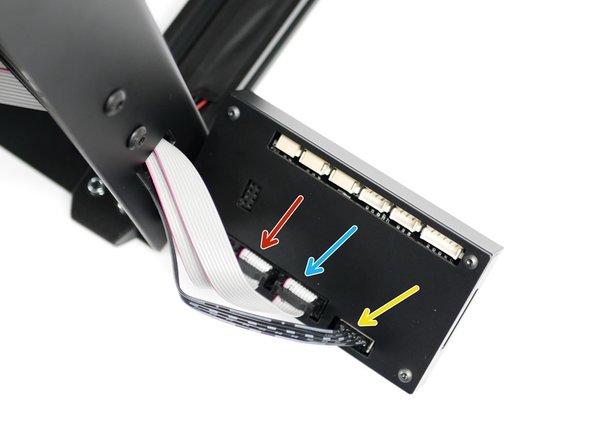

  25. Black cable: This is for controlling the printer through the touch screen interface via serial. The two white cables are for controlling the printer directly via marlin's interface through emulation mode. EXP 1

    • Black cable: This is for controlling the printer through the touch screen interface via serial.

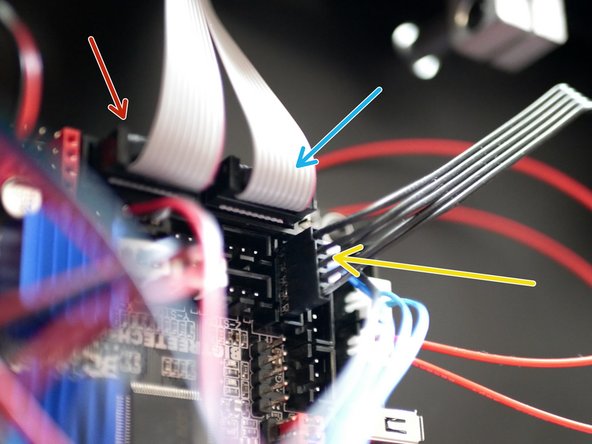

    • The two white cables are for controlling the printer directly via marlin's interface through emulation mode.

    • EXP 1

    • EXP 2

    • Black cable - board side.

    • Note the orientation of the loose connector and the 4-pin connector, match as shown in the third image.

    Edit
