    • The steps outlined here will show you how to wire the DSE components to the MKS Gen_L board.

    • If you're running a different board you will need to check its' schematics and wire accordingly.

  1. If you are deciding to use the included probe for auto-levelling you will need to wire it like shown: Brown cable directly to 12/24V power.
    • If you are deciding to use the included probe for auto-levelling you will need to wire it like shown:

    • Brown cable directly to 12/24V power.

    • Blue cable goes to a ground (GND) pin on your board.

    • Black cable goes to a digital (D) pin on your board. Make a note of this pin number as we'll be setting this in the firmware later.

    • On the MKS GEN_L board this is pin D63

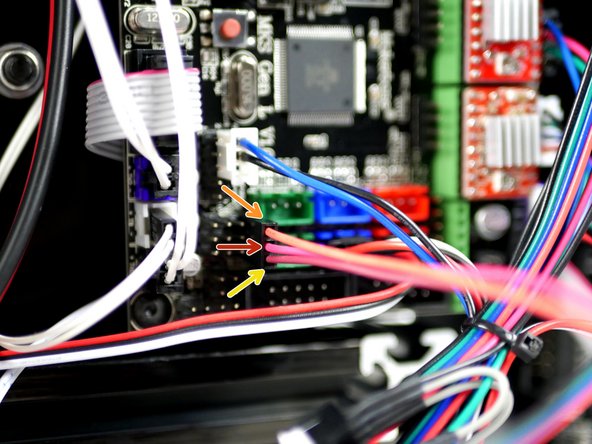

  2. Similarly the servo cable needs to be connected accordingly:
    • Similarly the servo cable needs to be connected accordingly:

    • Orange cable to a digital (D) pin.

    • On the MKS GEN_L this is the D4 pin.

    • Red Cable to 5V.

    • Brown cable to ground (GND)
