Stage 01: Frame

Written By: Makertech 3D
  • Comments: 20
  • Favorites: 0
  • Completions: 19

Difficulty

Easy

Steps

11

Time Required

01:00:00 - 02:00:00

Sections

1

Flags

0

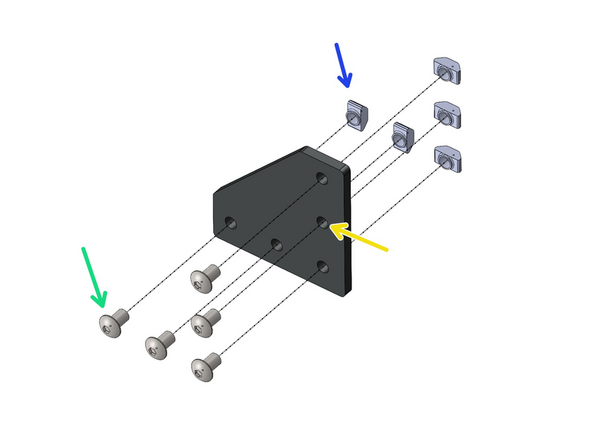

  1. Prepare 24 of the Corner Brackets as shown. M5 x 8mm Button

    • Prepare 24 of the Corner Brackets as shown.

    • M5 x 8mm Button

    • M5 T-Nut

    • Do not tighten these nuts, they just need to be placed on by a few turns - they will be tightened down later in the next step.

    Edit

  2. Assemble the corner of the frame as shown. Take care in orientating the beams as shown. 600mm Extrusion

    • Assemble the corner of the frame as shown.

    • Take care in orientating the beams as shown.

    • 600mm Extrusion

    • 470mm Extrusion

    • Corner Bracket Assembly (x3)

    • Ensure the end of the 600mm Extrusion is flush against the sides of the other extrusions as shown.

    • Assemble a total of four of these.

    Edit

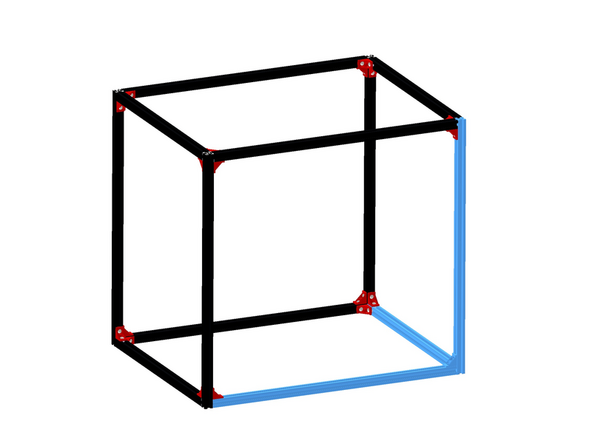

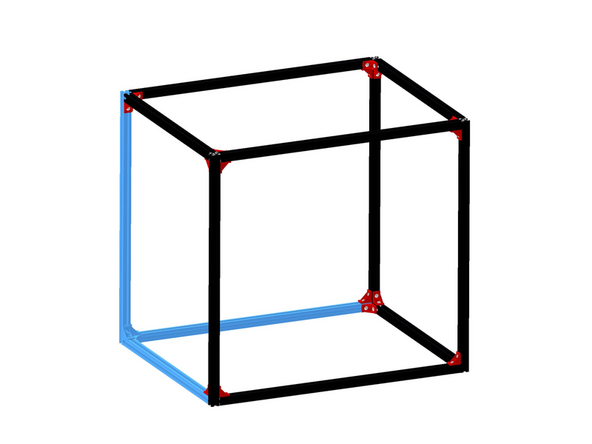

  3. Assemble the four corner assemblies together to create the full frame. The top portion of the frame where the gantry will run is the most critical when it comes to the frame being square. The rest of the frame is ok because the z-axis is designed to align itself with the top plane, irrespective of the frames squareness.

    • Assemble the four corner assemblies together to create the full frame.

    • The top portion of the frame where the gantry will run is the most critical when it comes to the frame being square. The rest of the frame is ok because the z-axis is designed to align itself with the top plane, irrespective of the frames squareness.

    Edit

  4. There are three types of L-brackets that look similar. We need to take the two types shown and described below. To these need to be added M5 x 8mm bolts and T-nuts. M5 x 8mm Button

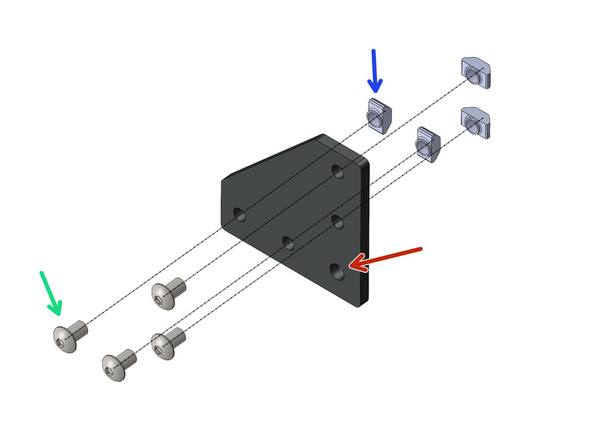

    • There are three types of L-brackets that look similar. We need to take the two types shown and described below. To these need to be added M5 x 8mm bolts and T-nuts.

    • M5 x 8mm Button

    • M5 T-nut

    • Do not tighten down yet, just fasten on the T-nuts by a few turns.

    • The first type has one 6mm hole in the corner as shown. (x4)

    • The other type only has 5mm holes around the edges. (x12)

    • The third - which is not used yet - has a threaded M4 hole on its diagonal edge. (x4)

    Edit

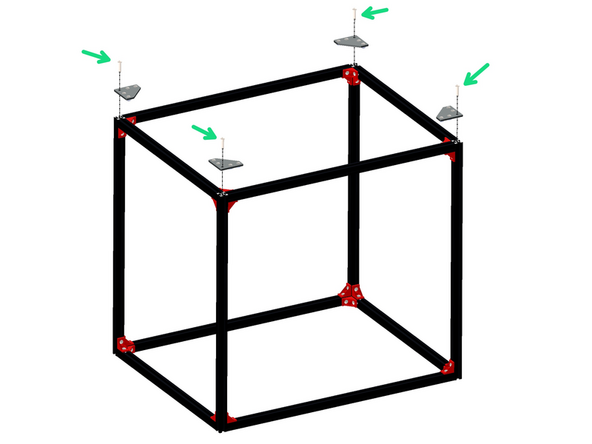

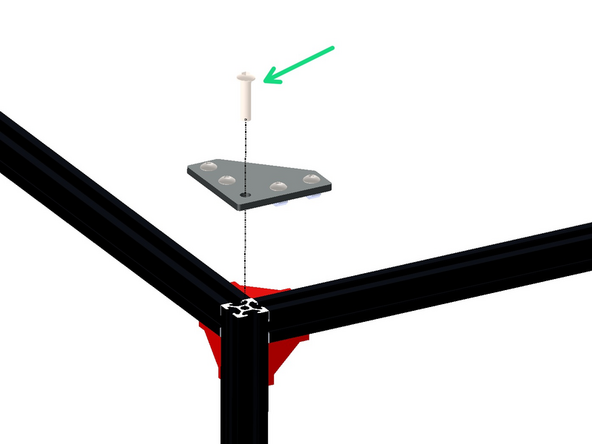

  5. Fix the top brackets (these are the ones with 6mm holes in the corners) to the top side of the frame as shown. M6 x 25mm Button M6 x 25mm Button

    • Fix the top brackets (these are the ones with 6mm holes in the corners) to the top side of the frame as shown.

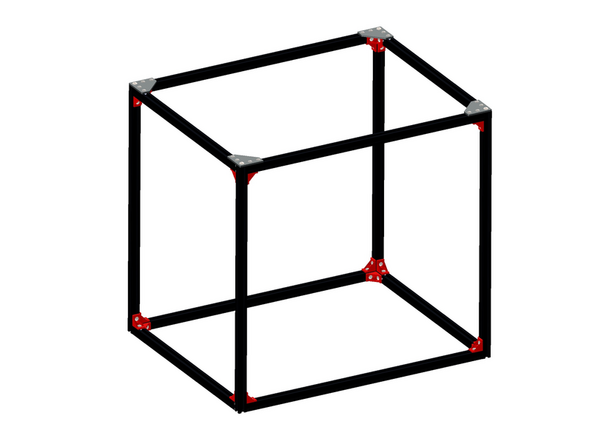

    • M6 x 25mm Button

    Edit

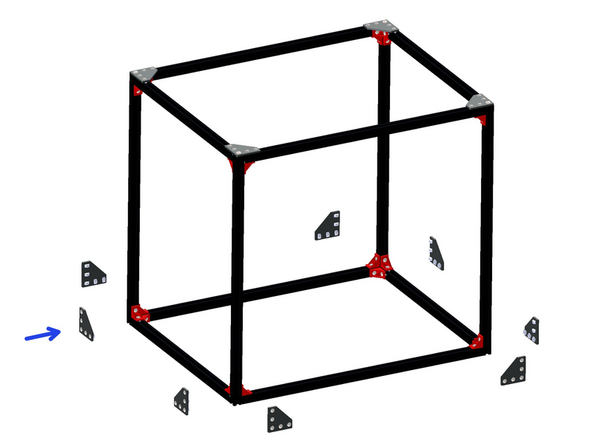

  6. Next using the remaining bracket assemblies attach them around the base of the frame as shown. Next using the remaining bracket assemblies attach them around the base of the frame as shown.

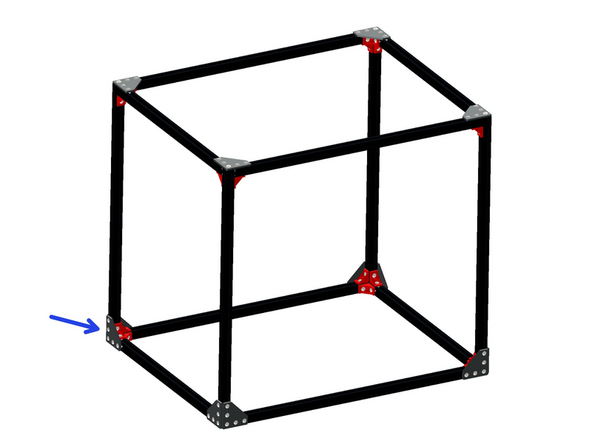

    • Next using the remaining bracket assemblies attach them around the base of the frame as shown.

    Edit

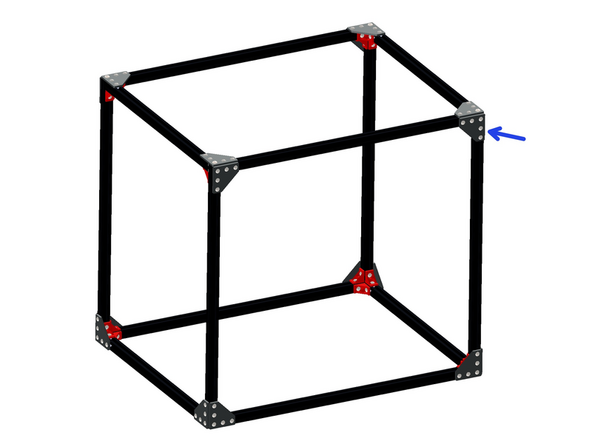

  7. Fix the remaining four bracket assemblies to the top front and rear sides of the frame as shown. These brackets go on the long edge.

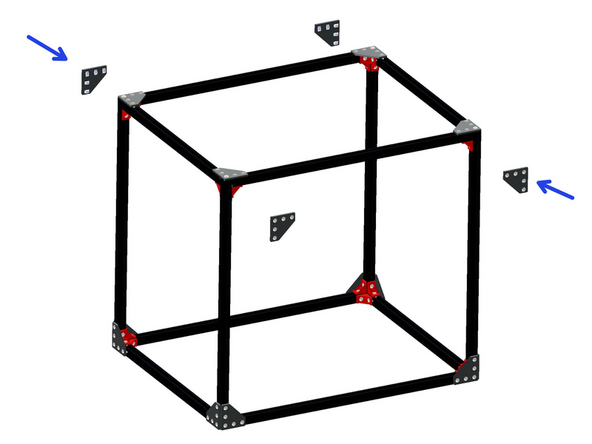

    • Fix the remaining four bracket assemblies to the top front and rear sides of the frame as shown.

    • These brackets go on the long edge.

    Edit

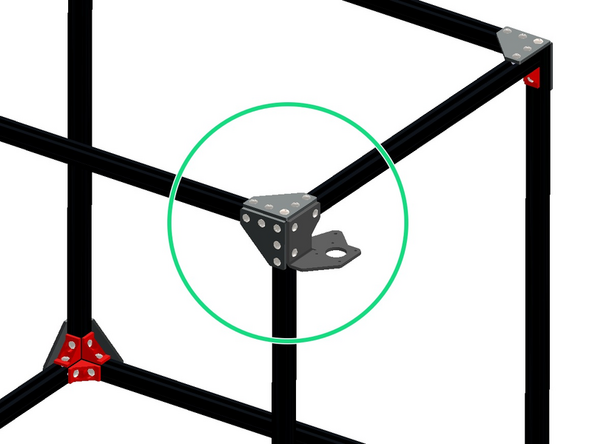

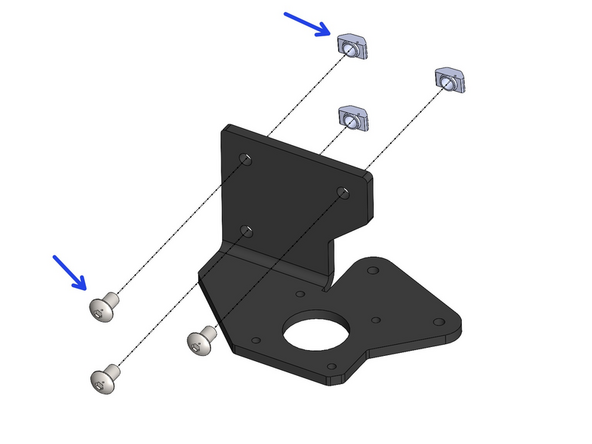

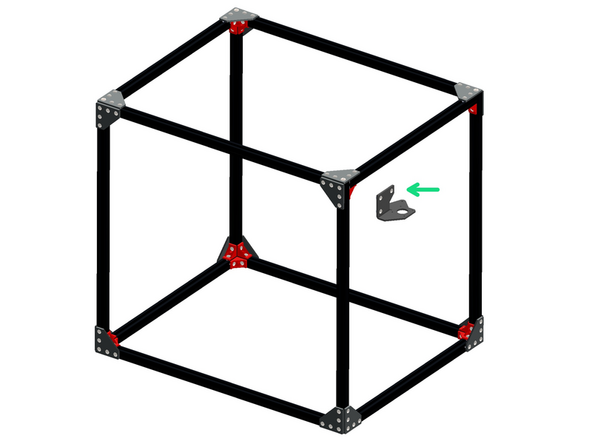

  8. Prepare the Front Motor Bracket with M5x8mm Button bolts and T-nuts Fix the bracket onto the front right side of the frame as shown. Fix the bracket onto the front right side of the frame as shown.

    • Prepare the Front Motor Bracket with M5x8mm Button bolts and T-nuts

    • Fix the bracket onto the front right side of the frame as shown.

    Edit

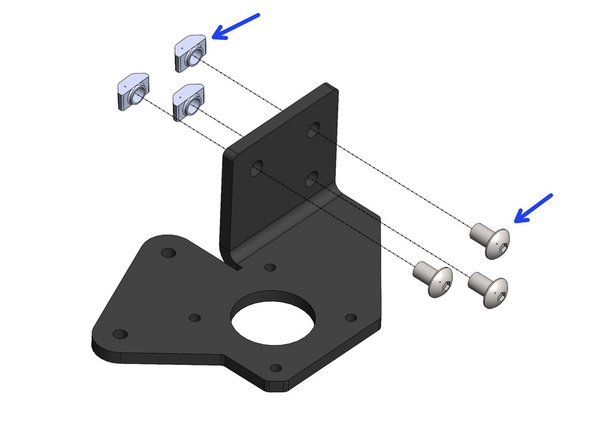

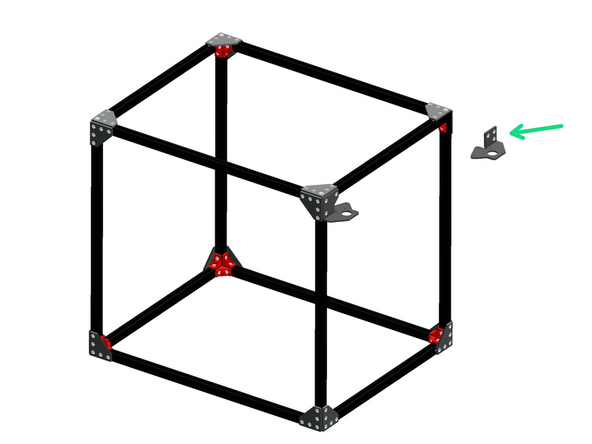

  9. Prepare the Rear Motor Bracket with M5x8mm Button bolts and T-nuts Fix the bracket onto the rear right side of the frame as shown. Fix the bracket onto the rear right side of the frame as shown.

    • Prepare the Rear Motor Bracket with M5x8mm Button bolts and T-nuts

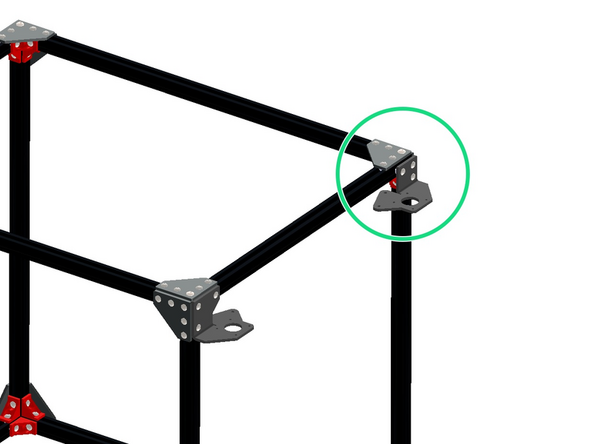

    • Fix the bracket onto the rear right side of the frame as shown.

    Edit

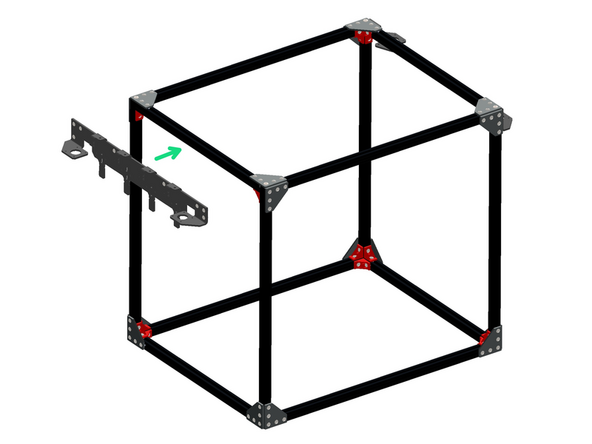

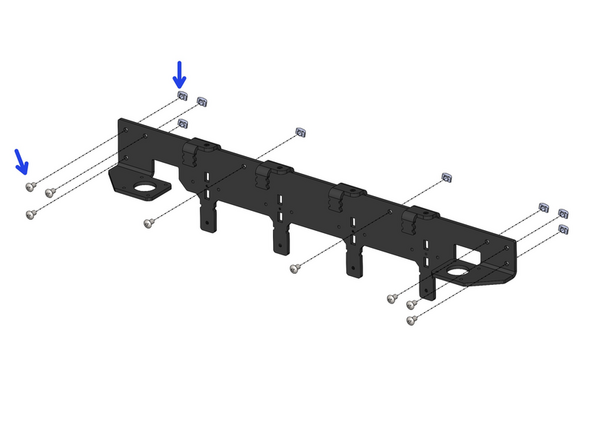

  10. Prepare the Tool Dock with M5 x 8mm bolts and T-Nuts as shown. Fix the Tool Dock onto the Left side of the frame as shown. Fix the Tool Dock onto the Left side of the frame as shown.

    • Prepare the Tool Dock with M5 x 8mm bolts and T-Nuts as shown.

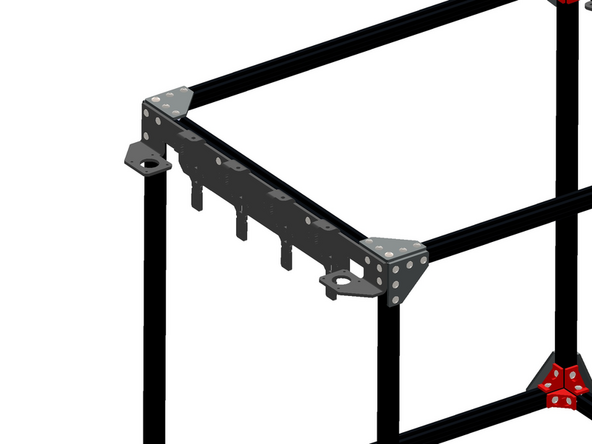

    • Fix the Tool Dock onto the Left side of the frame as shown.

    Edit

  11. Congratulations, you have completed the first stage of the build!

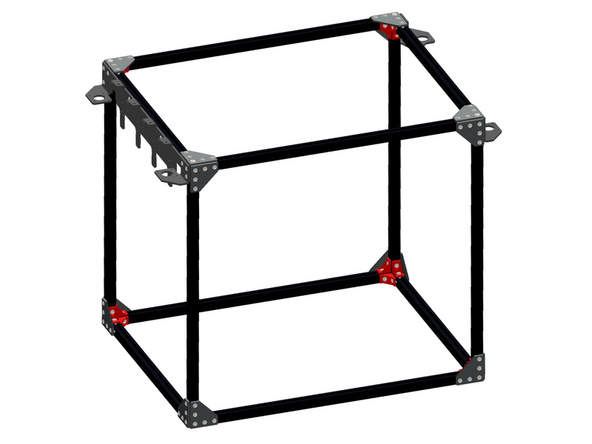

    • Congratulations, you have completed the first stage of the build!

    Edit
